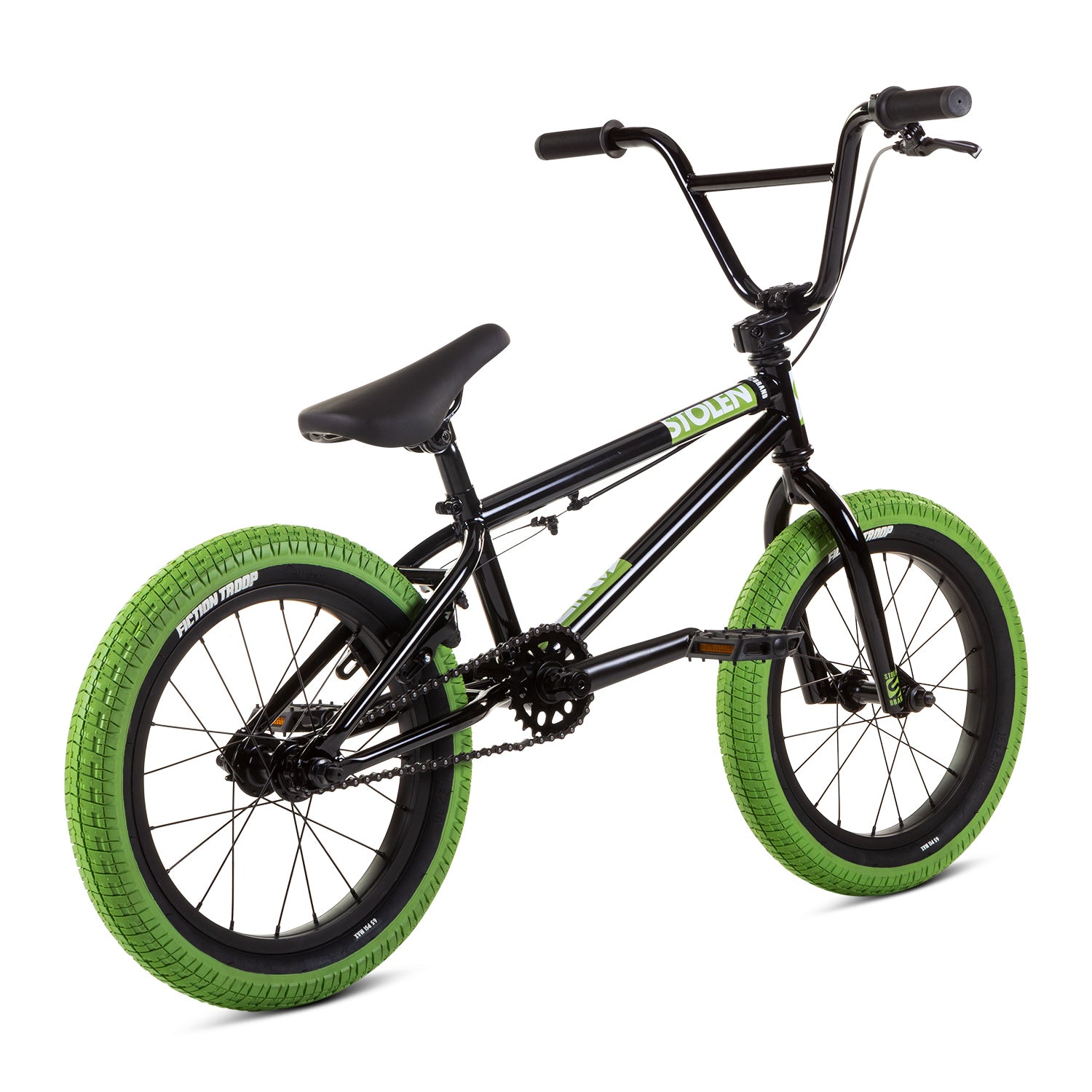

AGENT 16" COMPLETE BIKE

THE AGENT 16" IS MADE FOR RIDERS APPROX. 38-48" TALL. FOR 2021 WE GIVE YOU A GREAT UPDATED GEOMETRY ANO STRENGTH WHERE YOU NEED IT. 25x9T CASSETTE, 3-PIECE 4130 CHROMOLY ZEUS CRANKS, SPARTAN XS STEM & FICTION TROOP TIRES MAKES THIS BIKE THE OBVIOUS CHOICE.

DETAILED SPECIFICATIONS

Frame: Hand-welded 1020 Hi-Ten Steel tubes
Fork: 1020 HiTen Steel Tapered legs w/ One-piece steerer w/ Compressor top-cap
Bars: TIG Welded, HiTen Steel, 7.25"
Grips: Velo Mini Grips 110mm
Barends: Built In
Stem: Fiction Spartan XS, 40mm
Headset: Standard 1 1/8” Threadless
Brake Lever: APSE Alloy w/ Hinged Clamp
Brakes: APSE U25 Alloy U-Brake
Cranks: Fiction Zeus 3pc Tubular 4130 Chromoly, 8 Spline w/ Chromoly Spindle, 140mm
Sprocket: 25T
Bottom Bracket: Unsealed American
Pedals: Wellgo Mini PC
Chain: YBN 410 Black
Front Hub:  Unsealed 3/8” Axle
Rear Hub: 6061 Alloy Cassette w/ 12mm Chromoly Axle
Driver: 9t, One-Piece Chromoly
Front Rim: Fiction Trojan Alloy (Single-wall)
Rear Rim: Fiction Trojan Alloy (Single-wall)
Seat: Padded w/ Rails for Adjustment
Seat Post: Steel 160mm
Seat Clamp: Integrated
Front Tire: Fiction Troop 2.30”
Rear Tire: Fiction Troop 2.30”

Weight: 22.15lbs
Color: Black w/ Gang Green tires

GEOMETRY

Toptube Length: 16.25"

Chainstay Length: 11.25"
Headtube Angle: 74.0°
Seattube Angle: 70°
Standover Height: 6.6″
Bottom Bracket Height: 10"
Fork Offset: 32mm
