"HACKSTAND"

by

TEAM GARAGE HACK

MULTIPURPOSE & VERSATILITY

Introducing your best tool yet! "HACKSTAND TM" is arguably the most versatile tool any hobbyist should have on their workbench.

A multipurpose addition that brings mobility, organization and a little sense to the chaos. Losing hardware and parts under your work is now a thing of the past! Absolute durability, quality and reliability can be expected with "HACKSTAND TM"'s anodized billet 7075 aluminum clamps and 6061 aluminum hollow* threaded ball attachments.

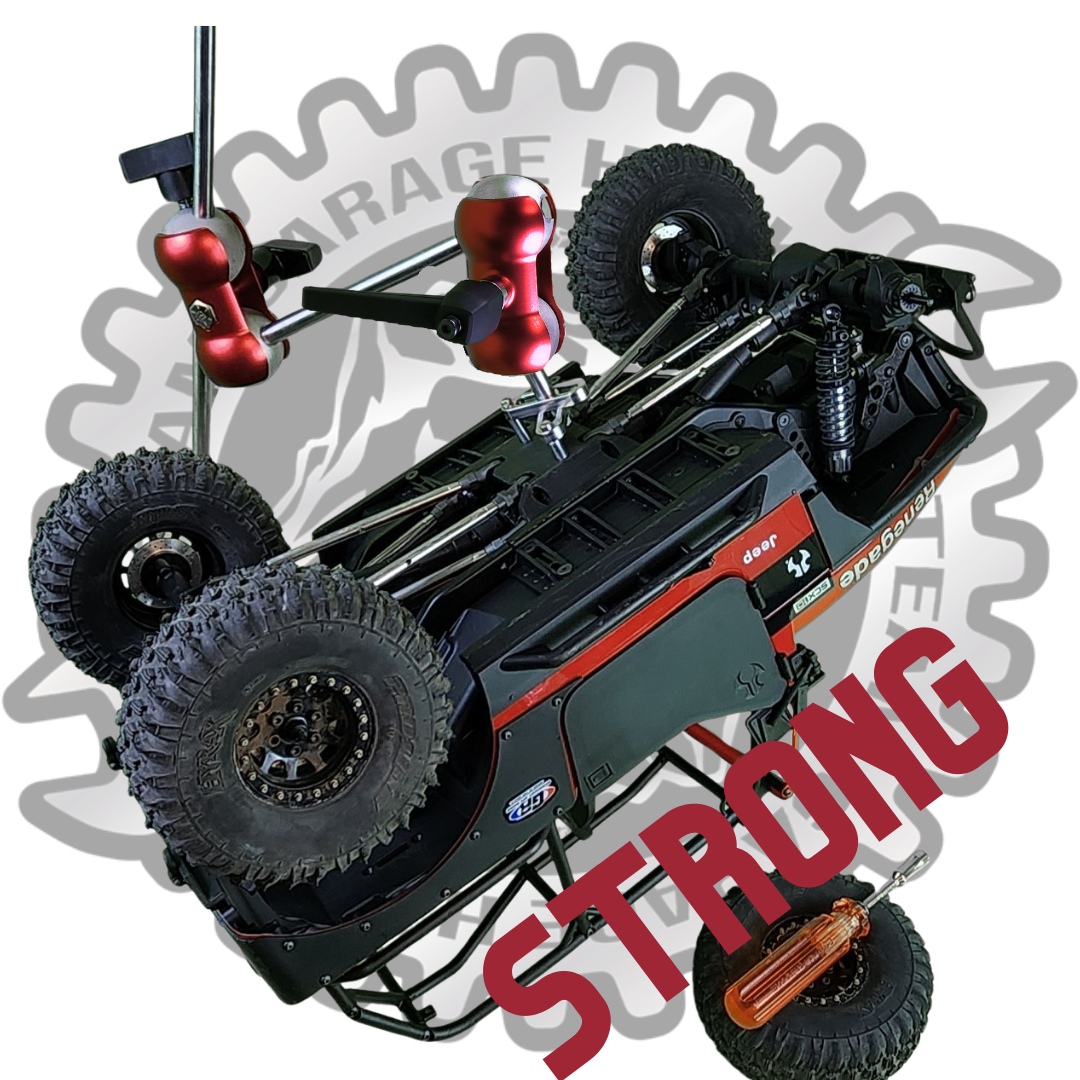

Need to hold that pesky project just right?

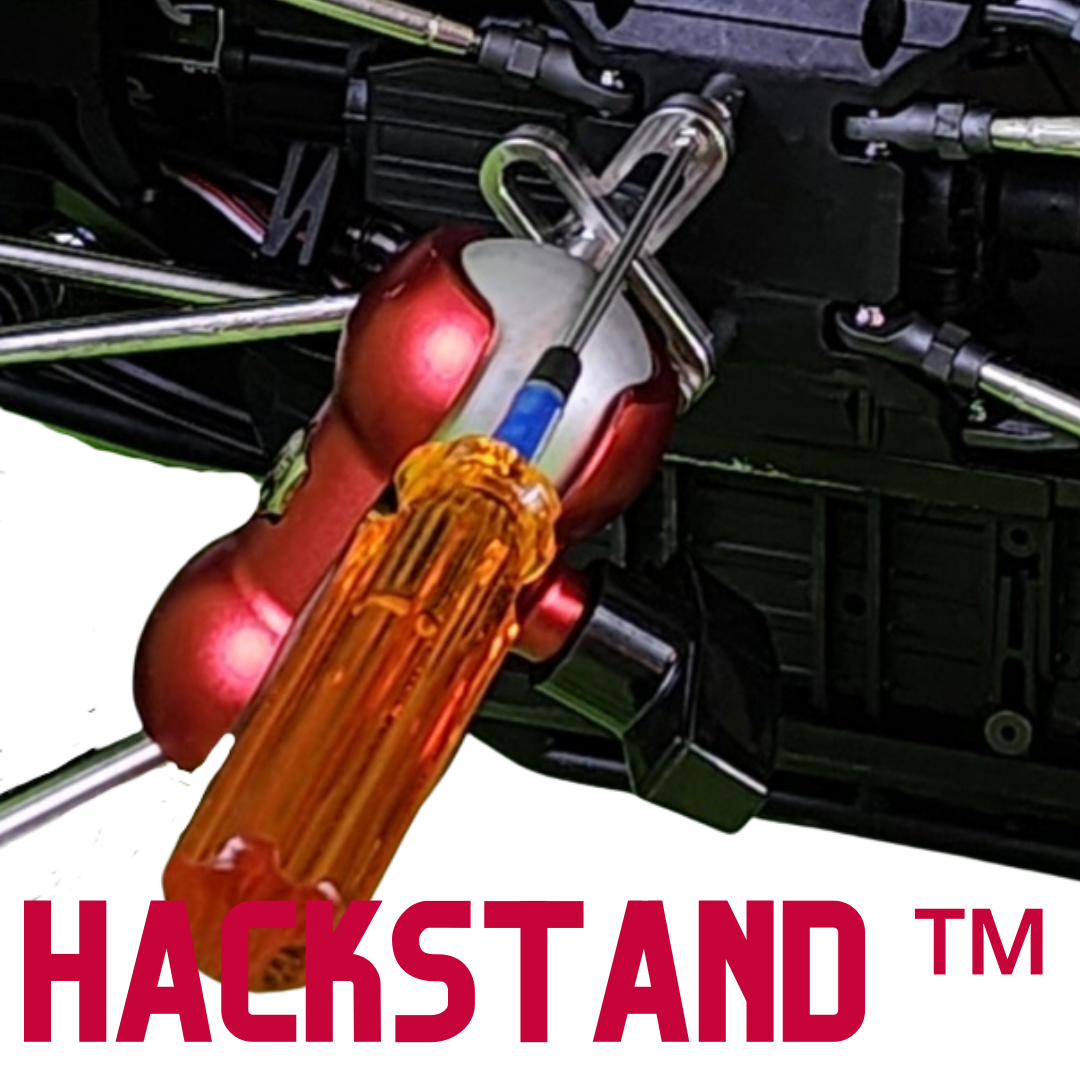

Tired of constantly picking up a build to look for lost hardware?

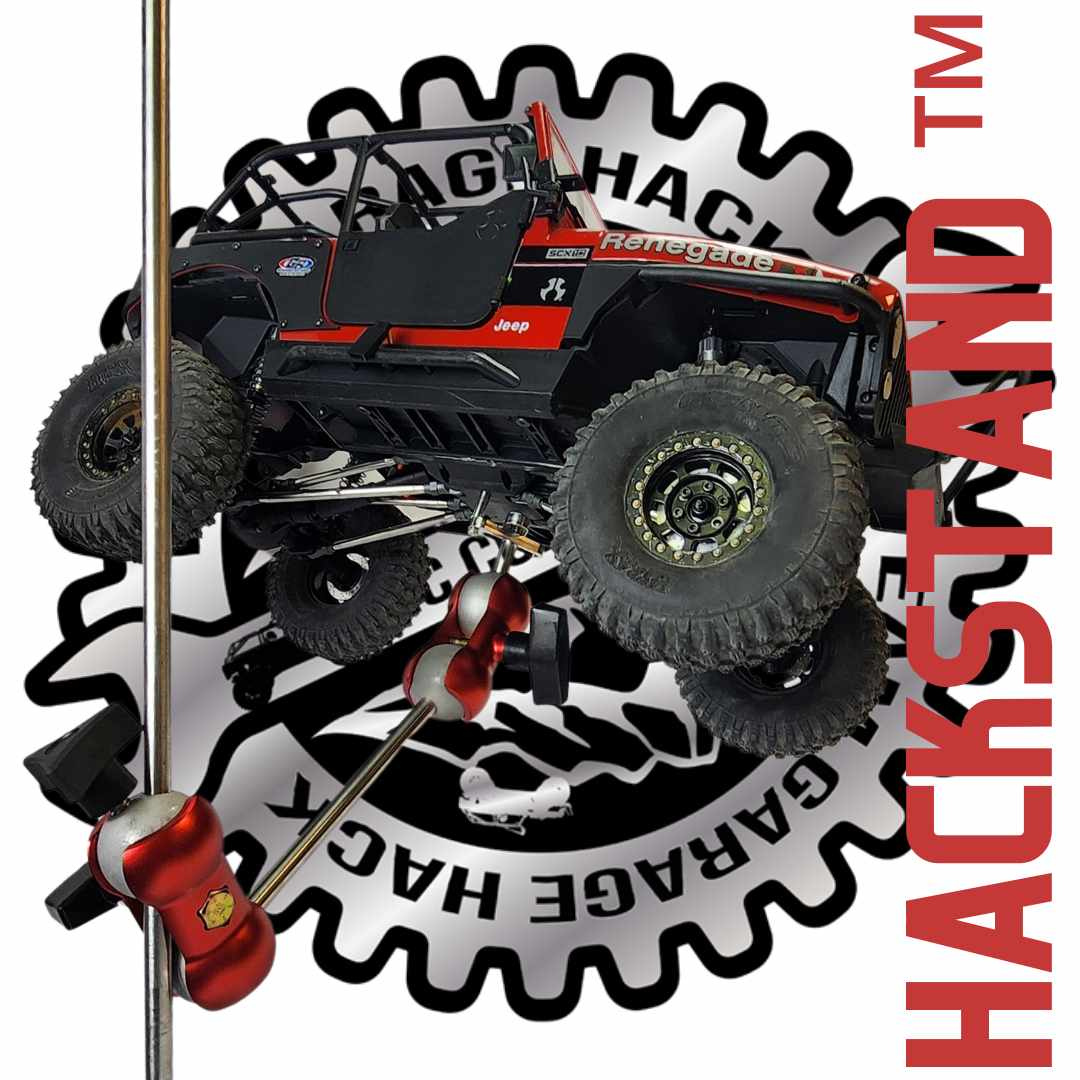

A building stand solution for every hobbyist!

DETAILS

• • CNC 316 SS Rods

    • 3/8" dia

    • 5/16"-18x1/2" thread

  • Main Rod

    • 18" Long

  • Intermediate Rod

    • 8" long

  • UNI-ROD*

    • 1/4"-20 female thread

    • 5/16-18 x 1/2" male thread

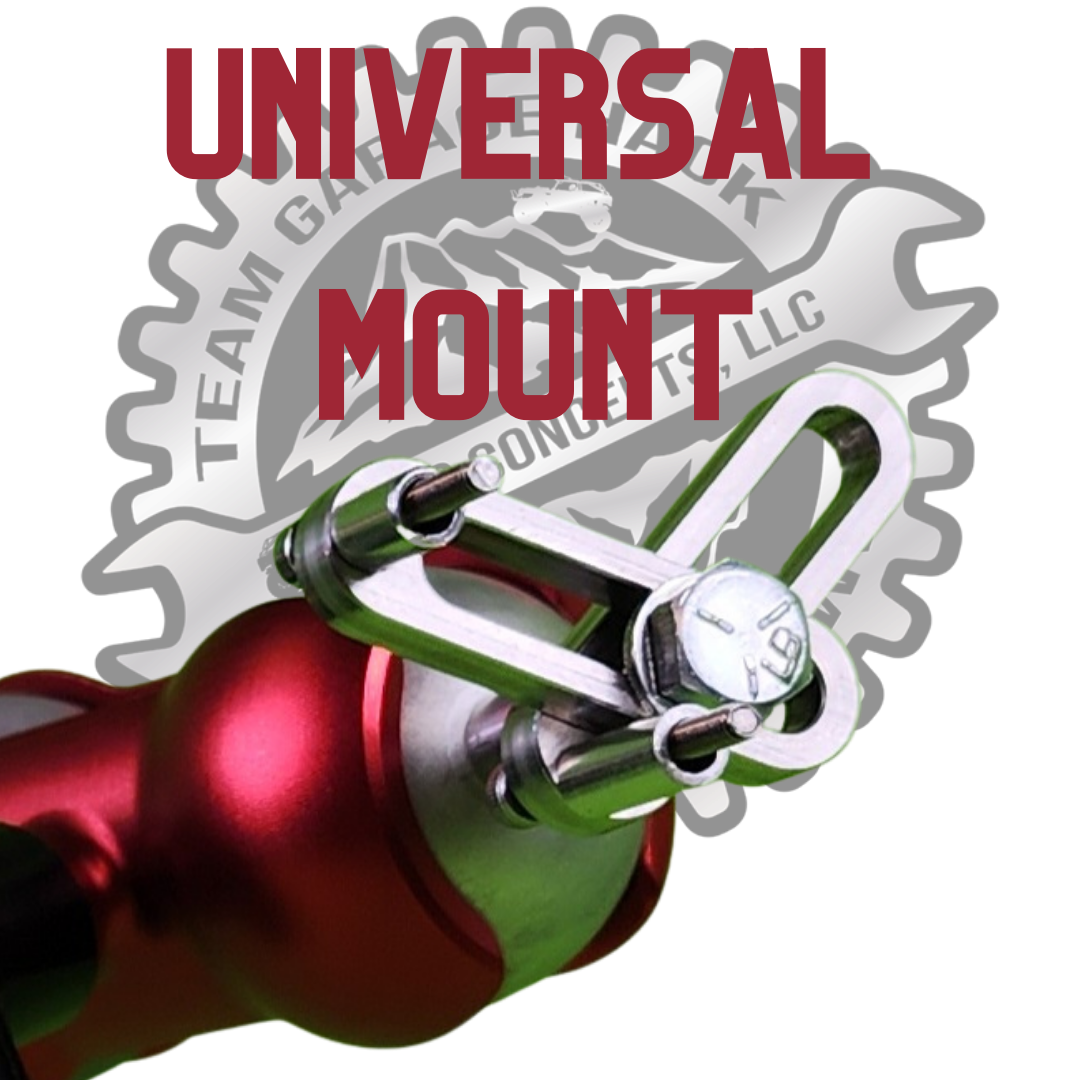

    • CNC 316 Stainless Steel Sliding Adapter Mount

    • • 1/8" Thru hole

      • 1/4" Thru slot

      • 1-3/4"Lx1/4"Hx1/2"W

      • Thru hole mounting min/max bolt pattern swing

        • 7/16" thru 2-3/4"

      • M3x30 SS Cap Screw

      • M3x30 SS Cap Screw

      • M3x35 SS Cap Screw

      • M3x12 Al Spacer

      • M3x20 Al Spacer

  • CNC billet 7075 AL clamping plates

    • .325 Thru hole

    • 5/16" Hex pocket

    • Center-of-Socket (CoS) to CoS

    • 2"

  • CNC billet 6061 Al Ball 1.5" dia

    • Slider

      • 3/8" Thru hole

      • 5/16-18 x 1/2" female thread

    • Fixed

      • 5/16-18 x 1/2" female thread

  • Quick Adjustable Clamp Levers w/ ball bearing

  • Tested up to 10lbs. At full horizontal extension
