DESCRIPTION

This is a tiny rechargeable lipo Lithium-ion polymer battery that fits perfectly behind the TinyDuino Processor board to power your projects. The battery has a capacity of 150mAh at 3.7V, the voltage can range from 4.2V when fully charged to 3.0V when completely discharged. The battery includes protection circuitry to protect the battery from overcharging or completely discharging.

This lipo battery includes a micro JST SH connector, which is used on TinyCircuits products that support Lithium-ion batteries.

TECH SPECS

• Nominal Voltage: 3.7V
• Nominal Capacity: 150mAh
• Max Charge Current: 150mA (1C)
• Max Discharge Current: 150mA (1C)

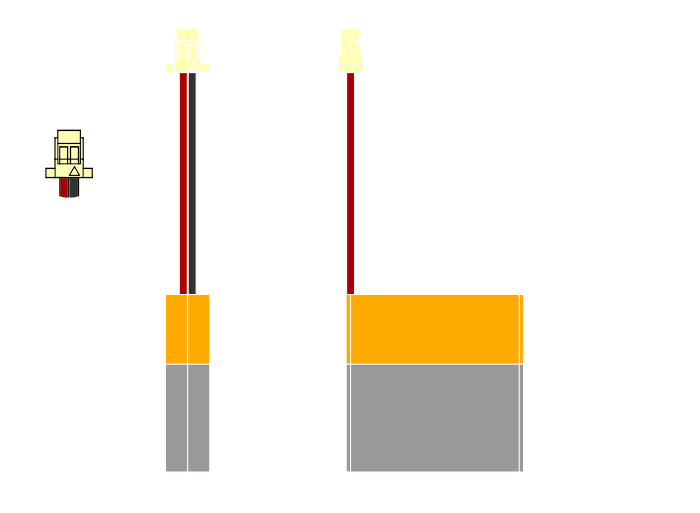

• Dimensions: 20.0±3.0mm x 20.0±2.0mm x 5.0±0.5mm (0.787±0.118" x 0.787±0.079" x 0.197±0.020")
• Wire Length: 25.0±10mm (0.98±0.39")
• Weight: 3.77 grams
• Battery Connector: JST SHR-02V-S-B
• Mating Connector: JST SM02B-SRSS-TB(LF)(SN)


DOWNLOADS

• CAD and images
• Battery Datasheet
• Material Safety Datasheet (MSDS)
• Certifications: UL1642, UN38.3, IEC62133
